Product Overview

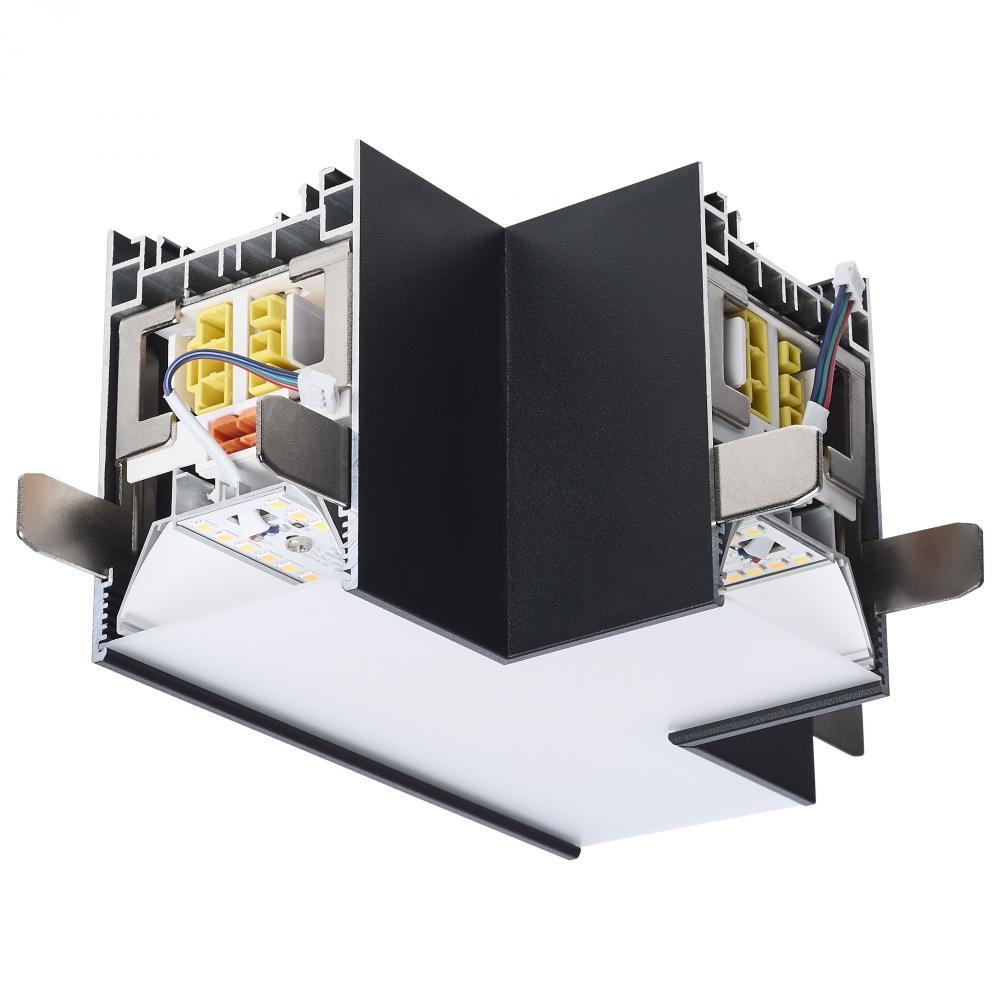

Momentum; T-Connector for LED Linear System; Black Finish

SATCO's 65-1285 T-Connector is available in a black finish. It helps in expanding lighting runs in a perpendicular direction from a single point. It is an accessory item sold separately from the main fixtures and is essential for branching designs.

Standard Information

Category:

Specialty Items

Subcategory:

Connectors

Option:

Damp Rated

Refinement Options

Category:

Hardware & Lamp Parts

Subcategory:

Lighting Hardware

Wattage:

5W

Bulb Type:

Not Applicable

Dimmable:

Yes-Dimmable

Kelvin:

3000K/4000K/5000K

Length:

5.8

Lumens / Light Output:

550L

Ship Carton Height:

7.87

Ship Carton Length:

7.87

Ship Carton Width:

4.33

Amps:

0.150A

Avg Rated Hours:

50000

BAA Compliant:

No

Beam Angle:

120

CA Prop-65:

Lead

Carton Cubic Feet:

0.1552

Cartons Per Unit:

1

CCT Selectable:

Yes

Color Temperature:

Soft White to Natural Light

Country Of Origin:

Thailand

CRI:

80+

Damp Rated:

Yes

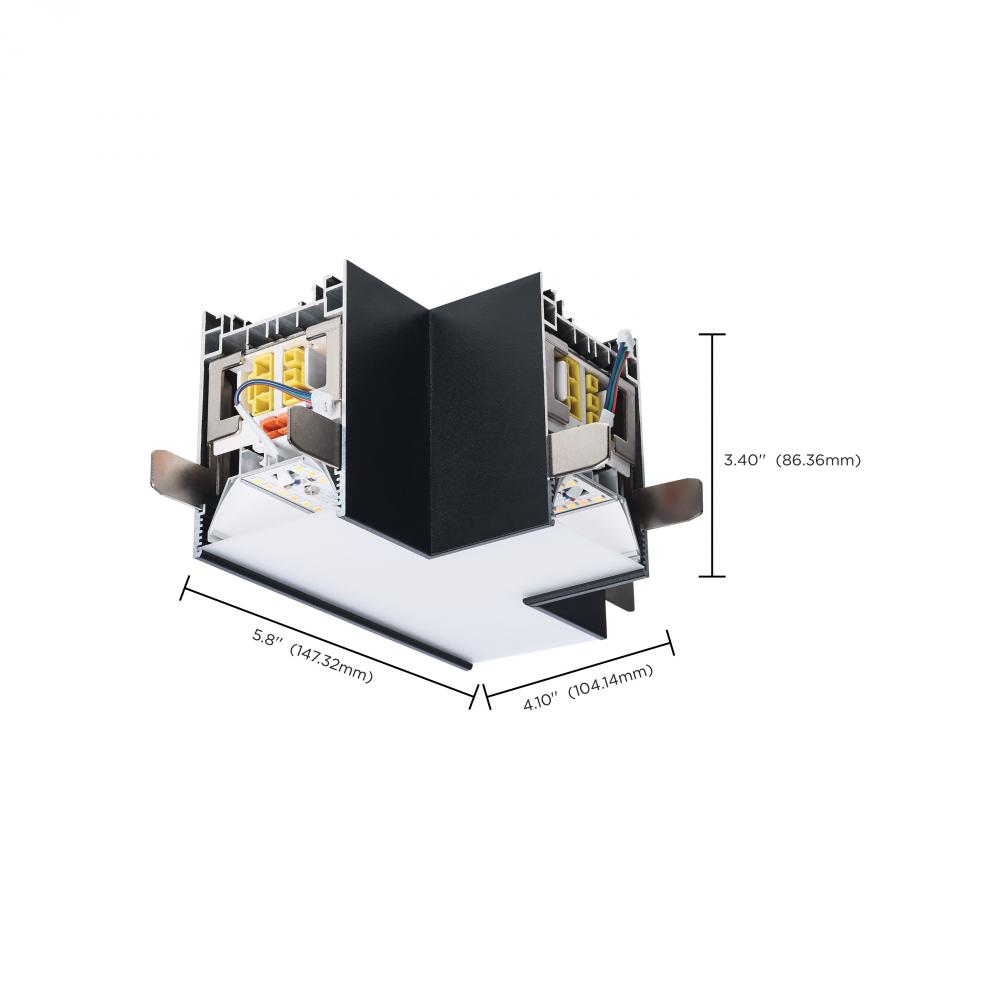

Dimension String:

L:5.80" W:4.09" H:3.40"

Dimmable Down To:

100 to 10 percent

Dimmable Function:

0-10V

Efficacy:

110.00 LPW

FCC Compliant:

Yes

Feature 1:

Momentum T-Connector

Feature 2:

Black Finish

Finish Family:

Black

Lens Material:

Polycarbonate (PC)

Material:

Aluminum

Mounting Procedure:

Ceiling/Wall

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Pack Type:

Box

Quantity In Pack:

1

RoHS Compliant:

Yes

Romance Copy:

The SATCO/NUVO Momentum system delivers a seamless, customizable lighting solution engineered for architects, designers, and installers who need both precision and flexibility in commercial, hospitality, retail, institutional, and modern office environment

Safety Listing:

cETLus - Listed

Short Description:

LED T-CONNECTOR LINEAR SYSTEM

Tariff Code:

9405.11.6010

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

UNSPSC:

31163100

Warranty:

5-Years
